TECHNICAL CHARACTERISTICS - 6625-00-782-1176 INC: 16449 FIIG: A310A0ITEM NAME: VOLTMETERDEFINITION: AN INSTRUMENT WHICH MEASURES ELECTRICAL POTENTIAL AND IS CALIBRATED IN VOLTS OR ANY MULTIPLE AND/OR SUBMULTIPLE THEREOF. THE VALUE MAY BE EXPRESSED BY MEANS OF A POINTER AND CALIBRATED DIAL OR A DIGITAL READOUT DISPLAY. CHARACTERISTIC VALUECIRCUIT CURRENT FOR WHICH DC DESIGNED OVERALL LENGTH 2.000 INCHES MAXIMUM MOUNTING HOLE DIAMETER 0.120 INCHES NOMINAL OVERALL DIAMETER 2.690 INCHES MAXIMUM MOUNTING BOLT CIRCLE 2.440 INCHES NOMINAL DIAMETER INSTALLATION DESIGN PANEL MOUNTING ARRANGEMENT STYLE THREE HOLE/STUD BOLT CIRCLE DIAL SCALE MARKING COLOR BLACK SINGLE INDICATOR SINGLE RANGE ACCURACY IN PERCENT -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES METER DEPTH BEHIND MOUNTING 1.600 INCHES MAXIMUM FLANGE METER BODY DIAMETER BEHIND 2.210 INCHES MAXIMUM MOUNTING FLANGE BACKGROUND COLOR WHITE SINGLE INDICATOR SINGLE RANGE MOUNTING FACILITY TYPE AND 3 UNTHREADED HOLE QUANTITY FEATURES PROVIDED MAGNETIC SHIELD CIRCUIT ATTACHMENT METHOD 2 SOLDERLESS LUG AND QUANTITY STYLE DESIGNATOR ROUND FLUSH MTG
Related Items:

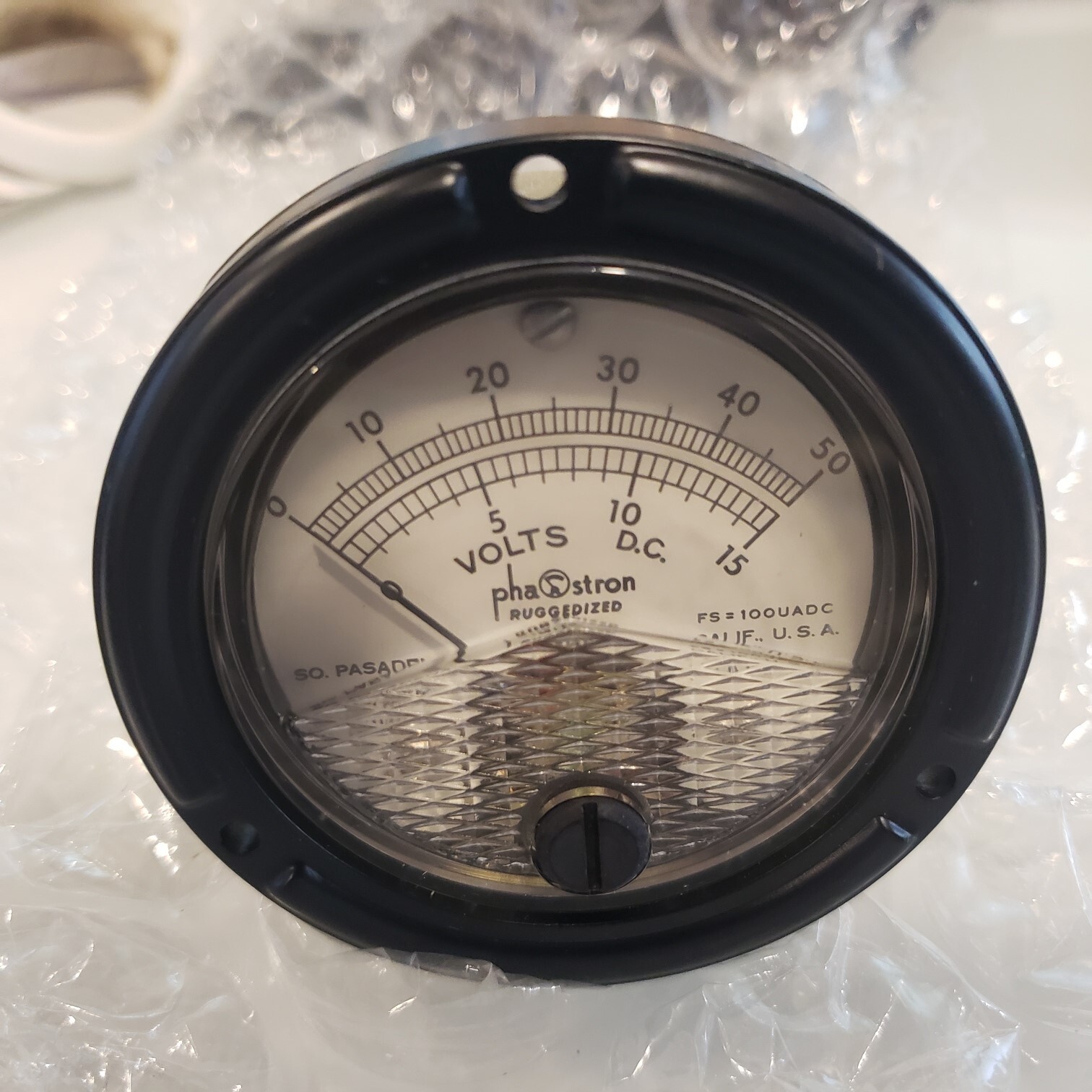

PHAOSTRON INSTRUMENT VOLTMETER 2078944 2078944PC2 6625-00-782-1176
