TECHNICAL CHARACTERISTICS - 6625-00-067-7617 INC: 16450 FIIG: A310A0ITEM NAME: AMMETERDEFINITION: AN INSTRUMENT WHICH MEASURES ELECTRIC CURRENT AND IS CALIBRATED AND MARKED IN AMPERES OR ANY MULTIPLE AND/OR SUBMULTIPLE THEREOF. THE VALUE MAY BE EXPRESSED BY MEANS OF A POINTER AND CALIBRATED DIAL OR A DIGITAL READOUT DISPLAY. FOR CURRENT DETECTING TYPE OF DEVICES, SEE GALVANOMETER. CHARACTERISTIC VALUECIRCUIT CURRENT FOR WHICH AC DESIGNED OVERALL LENGTH 2.850 INCHES MAXIMUM MOUNTING HOLE DIAMETER 0.143 INCHES MINIMUM AND 0.157 INCHES MAXIMUM SCALE DIVISION QUANTITY 10 SINGLE INDICATOR SINGLE RANGE FREQUENCY RATING 400.0 HERTZ NOMINAL OVERALL DIAMETER 3.510 INCHES MAXIMUM MOUNTING BOLT CIRCLE 3.160 INCHES NOMINAL DIAMETER INDICATOR TYPE DIAL W/POINTER INSTALLATION DESIGN PANEL MOUNTING ARRANGEMENT STYLE THREE HOLE/STUD BOLT CIRCLE FREQUENCY RESPONSE RANGE +360.000 TO 440.000 HERTZ SENSITIVITY RATING 75.0 MILLIVOLTS DIAL SCALE MARKING COLOR BLACK SINGLE INDICATOR SINGLE RANGE ACCURACY IN PERCENT -2.0/+2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE PANEL FOR WHICH DESIGNED MAGNETIC METER DEPTH BEHIND MOUNTING 1.660 INCHES MAXIMUM FLANGE METER BODY DIAMETER BEHIND 2.800 INCHES MAXIMUM MOUNTING FLANGE MOVEMENT TYPE MOVING IRON VANE BACKGROUND COLOR WHITE SINGLE INDICATOR SINGLE RANGE POINTER COLOR BLACK SINGLE INDICATOR SINGLE RANGE MOUNTING FACILITY TYPE AND 3 SCREW AND 3 UNTHREADED HOLE QUANTITY SCALE GRADUATION TYPE LINEAR SINGLE INDICATOR SINGLE RANGE MEASUREMENT RANGE +0.0 TO 10.0 AMPERES, AC SINGLE INDICATOR SINGLE RANGE CIRCUIT CONSTRUCTION TYPE NONELECTRONIC MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE CIRCUIT ATTACHMENT METHOD 2 SOLDER LUG AND 2 THREADED STUD AND QUANTITY SPECIAL FEATURES RUGGEDIZED MATERIAL STEEL NUCLEAR HARDNESS CRITICAL NONHARDENED FEATURE SURFACE TREATMENT PAINT STYLE DESIGNATOR ROUND FLUSH MTG TEST DATA DOCUMENT 81349-MIL-M-10304 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS TYPICAL, AVERAGE, NOMINAL, ETC.). SPECIFICATION/STANDARD DATA 81349-MIL-M-10304/14 GOVERNMENT SPECIFICATION FSC APPLICATION DATA TEST SET,ELECT. EQUIP.
Related Items:
PHAOSTRON INSTRUMENT VOLTMETER 2078944 2078944PC2 6625-00-782-1176
$50.00

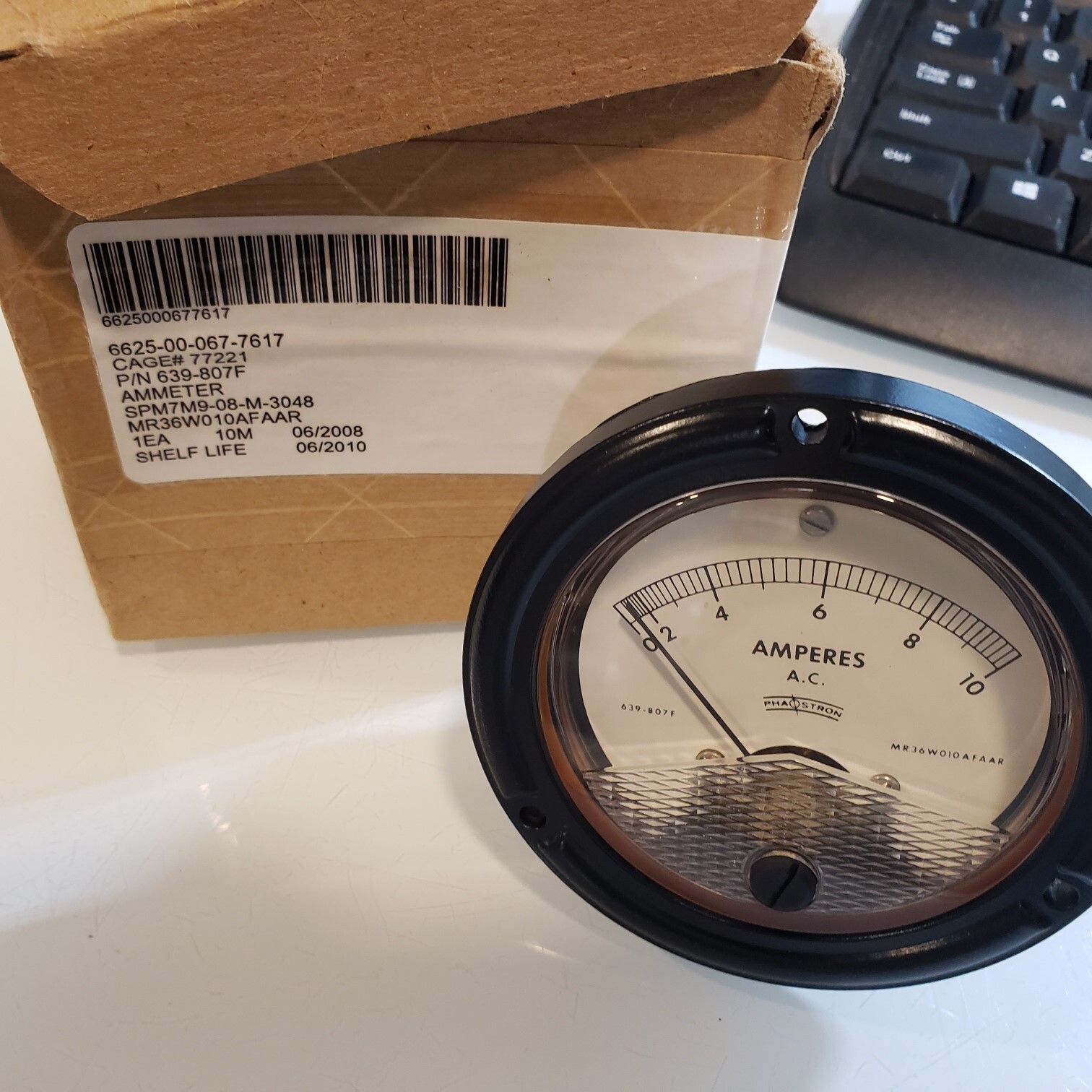

PHAOSTRON INSTRUMENT AMMETER MR36W010AFAAR 6625-00-067-7617
