Clansman Radio PRC-350 RT-350 NSN 5820-99-114-3638 Man pack complete kit issued unit.
The Clansman RT-350 / PRC-350 is a narrow-band FM VHFman-pack radio that operates from 36-57MHz in 2KHz steps, total of 841programmable channels with 2 Watts output. The radio operates from a 15VDCbattery pack. The desired frequency is set by four knobs on the side of theradio which can be operated even while the operator is wearing Arctic mittens,or in the dark by counting clicks from the end-stops.Having set the four frequency control knobs the operator has then to set theonly remaining control, the system switch, to one of its four positions: Off,Whisper, Loud and Noise-On.In the Whisper position the audio output is reduced by a factor of 10 and themicrophone sensitivity is increased by about the same amount. This position isused in situations close to the enemy where a minimum amount of noise isdesirable.The Loud position enables the set to be used in conditions of high ambientnoise levels, such as may be encountered in active service.Noise-On position the squelch or muting circuit is disabled and receiver noiseis heard in the absence of a signal.The optional accessories include a Terylene harness for carrying the set on thehip or back, Battery Pack, Flexible Antenna & 2 meter Long Whip Antenna.Normally the 2 Meter Whip Antenna is used and a rotating mounting socket on theset enables the rod to be rotated rough 90? when the operator is lying down.The headset and handset provided with the complete station can be connected tothe set at the same time to enable an officer or a second operator to monitorthe radio.
The UK PRC350 (often referred to as the Clansman RT-350) is a lightweight,solid-state VHF FM manpack and belt-portable radio developed byPlessey and manufactured by companies like Racal for the British Army.
In this lot you are getting:

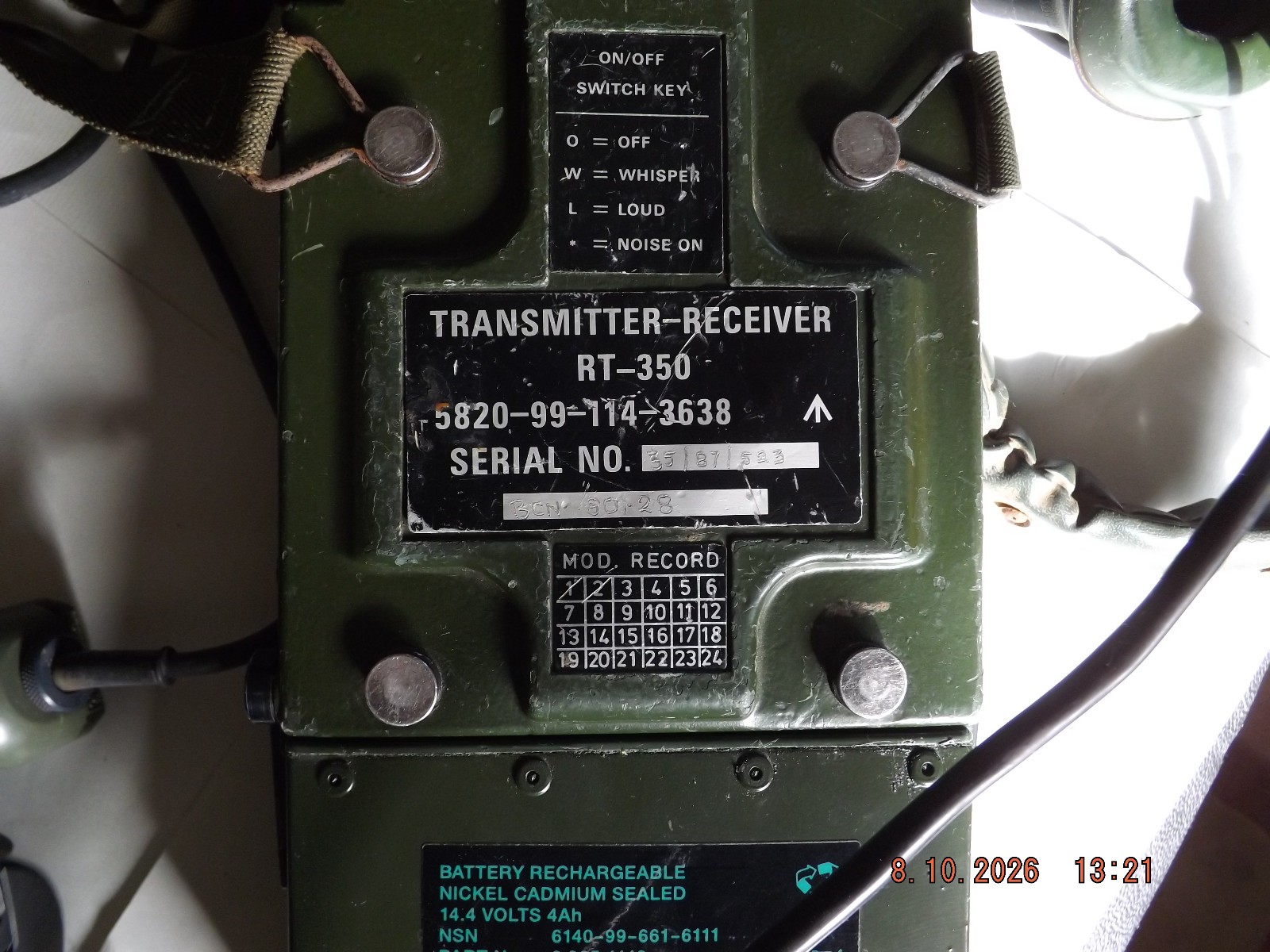

1 x Transmitter - Receiver RT-350 Serial no. 35/87/523
1 x Shoulder Carry Harness Z99-5999-99-620-8028
1 x Headset & Microphone set Z42-5965-99-628-8320
1 X Pressel Box Z42-5965-99-763-7913
1 x Brand new (still in MOD packaging) Antenna 0.6 Metre Z99-5935-99-651-6417
1 x PRC 350 Audio carry bag - waxed canvas type
1 x 1.2 M Antenna Trailing Wire Z99-5935-99-620-8345
1 x Headset with Racal Throat Microphones with PTT switch 7965-99-643-7935 7 Pin connector for PRC-349 units
1 x Handset Pouch Z99/5065-99-620-8031
1 x Handset Z42/5965-99-620-5669
1 x Battery Charge cable
1 x Clansman Sealed Metal Cased Battery.14.4 volt secondary battery NSN 6140-99-661-6111 consists of 12 internal and sealed Ni-Cd cells - will require charging. (note Ni-Cds are old technology).
A copy of the user operating manual will be included.
