This is the best tool you will ever find for making field sketches of piping. It will save you both time and effort, as well as assist you in producing the highest quality sketches. Made 100% in the USA by American workers! Packed full of features and tools, as those listed below. Your office hands will love you! Plus the blue color helps it to stand out, insuring it doesn't get lost in the weeds.

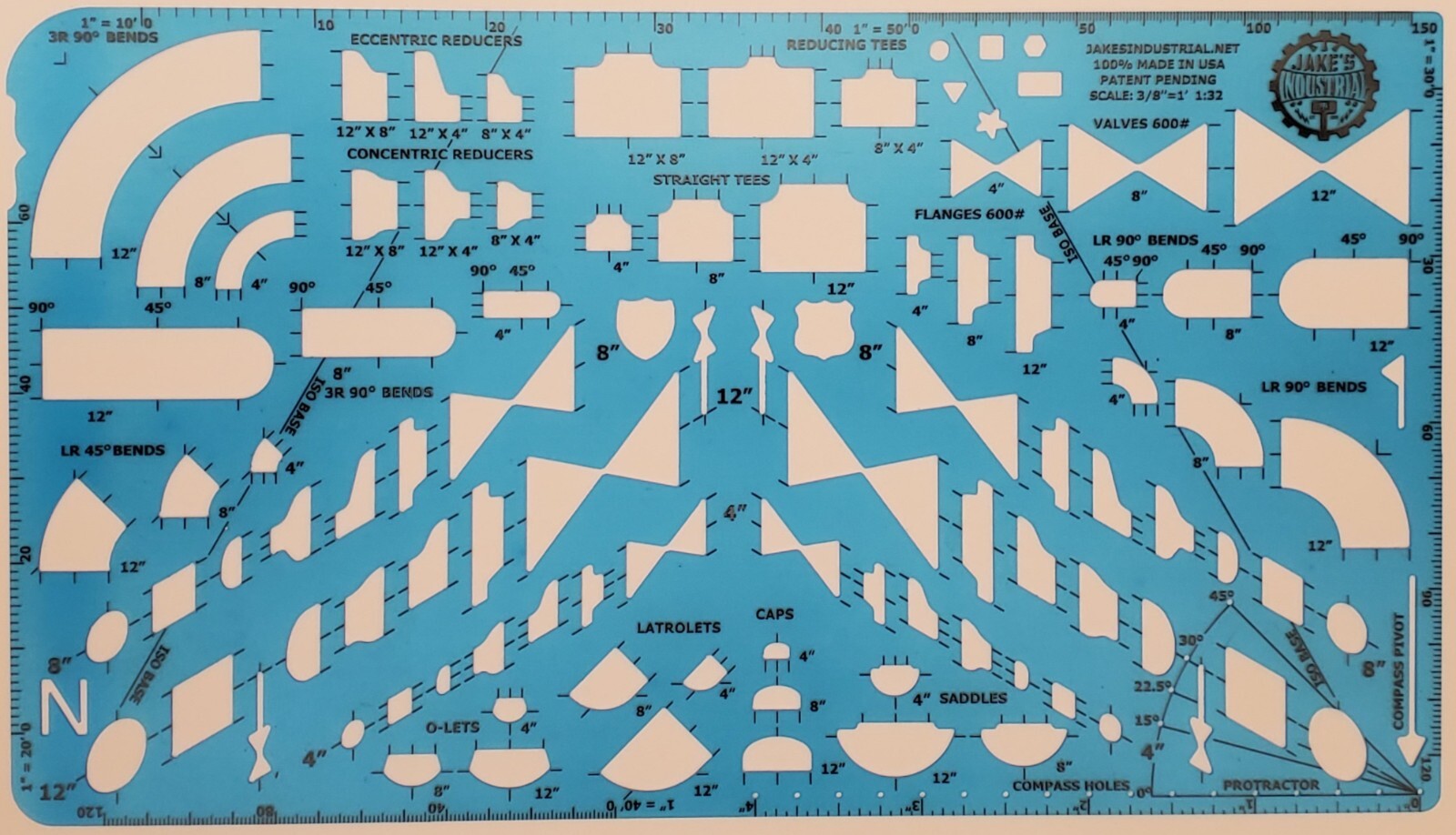

2D Features: 45°/90° bends (LR & 3R), eccentric reducers, straight & reducing tees, valves, flanges, o-lets, lateral-o-lets, caps, and saddles (repads).
Isometric Features: valves, flanges, eccentric & concentric reducers, caps, parallelogram (straight pipe), ellipse (used for bends or open ended pipe), vent and drain valves.
Extra Shapes: State highway & interstate badges, arrow, flag, "N", bracket, small circle, square, hexagon, rectangle, triangle, star.
Extra Features: Compass holes for drawing large circles in 1/4" increments UP TO 8" DIAMETER!, protractor, ruler, Scales: & corners with (1/16")(1/8")(1/4")(1/2") radii.
Related Items:
2D Isometric Piping Fitting Drafting Drawing Sketching Template Stencil Blue
$25.00
